The variety of applications of the MicroGator

The variety of connections enables cross-application and cross-system use in the areas of sanitation and inspection.

Case of application where the adapter that can be mounted on the MicroGator electric cutting robot was used to deploy packers to install stainless steel sleeves.

Systems and technologies involved


On a large-scale industrial estate in Rhineland-Palatinate, KSM Umweltdienste GmbH & Co. KG (KSM) is cleaning, inspecting and rehabilitating the approximately 55 km long sewer system to ensure trouble-free operation. In some sewers with diameters from DN 250 to DN 700, there are connections that are no longer needed. These are to be sealed off purely mechanically with stainless steel sleeves with rubber seals. This is to be followed by an inspection to document the results of the work.

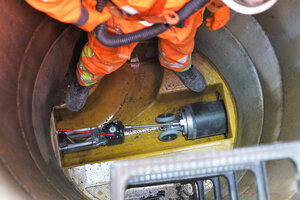

With the MicroGator, packers for installing liner sleeves were steered in a controlled manner in the sewer. The packer was attached to the MicroGator via an air-ducting coupling rod.

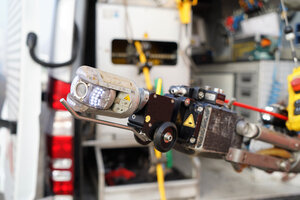

Under observation by the CutterCam pan-head colour camera, the packer with the sleeve was positioned exactly at the respective areas to be sealed. The ORION camera was operated on the MicroGator using an inspection camera adapter. The cutting robot and the inspection camera were operated with the same controls in the rehabilitation vehicle.

Company introduction

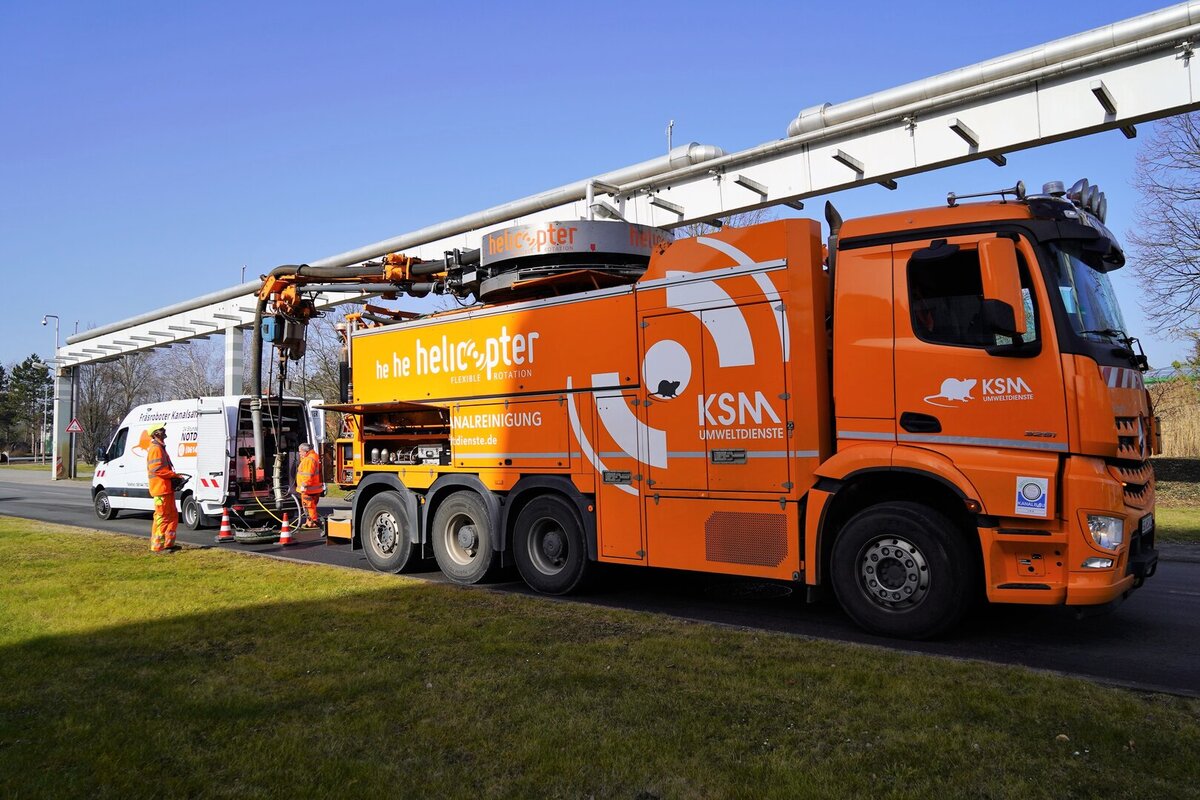

KSM Umweltdienste GmbH & Co. KG offers a wide range of services, from leak testing and sewer inspection with a TV camera to the disposal of hazardous waste that requires monitoring. Sewer rehabilitation using open and trenchless construction methods is also part of the 56-strong team's range of services. Since 2008, the specialist company has been carrying out work for cities and municipalities, industry and commerce and private households.
